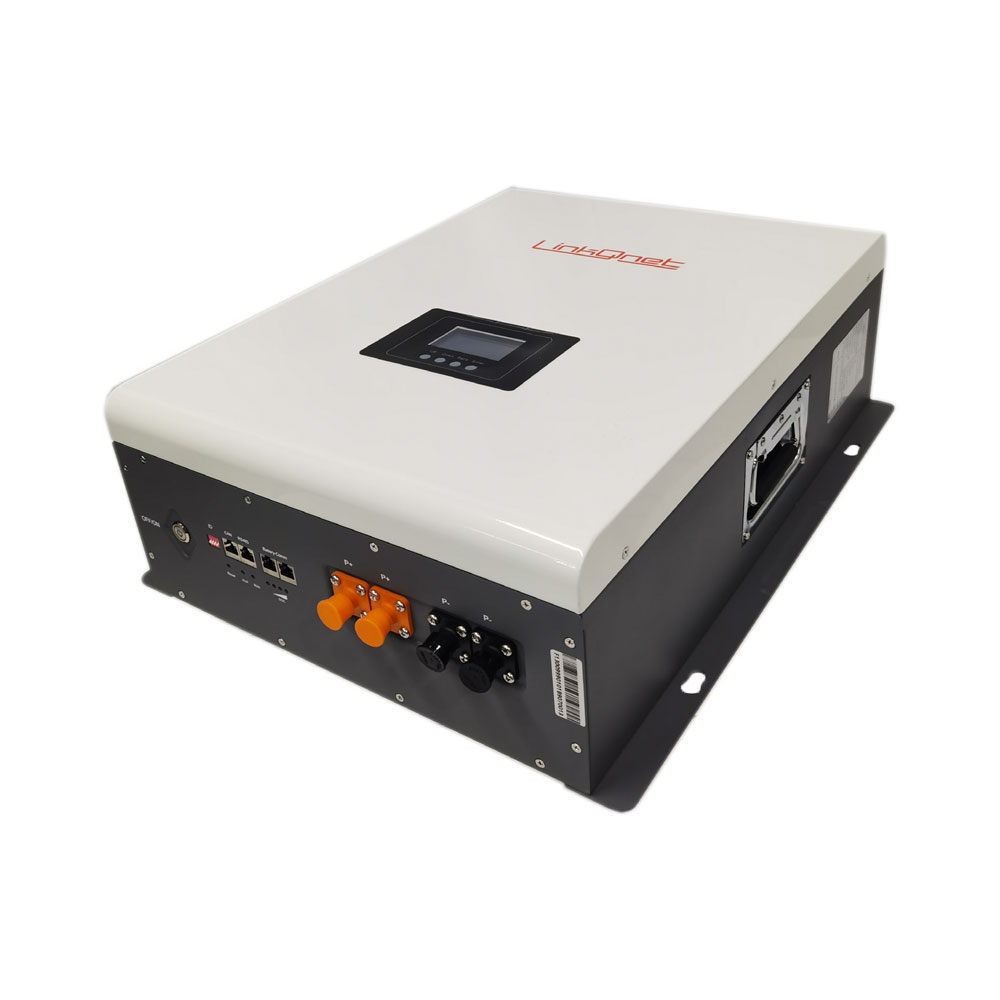

LinkQnet LQ BATTERY PACK LIPO4 51.2V 100AH CAN BMS W/MOUNT

Description

The LinkQnet LQ BATTERY PACK LIPO4 51.2V 100AH CAN BMS W/MOUNT is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• High Density Solution: The battery pack is expertly constructed from premium materials and complies with all major safety and performance SPECIFICATIONS
• The core cell storage consists of sixteen new Lithium-Ion Phosphate (LFP) prismatic cells manufactured by Hefei Guoxuan Hi-Tech Power Energy Co., Ltd
• Guoxuan are the manufacturers of choice for leading German EV brands and well as many other electric vehicle manufacturers
• Innovative Battery Management System: The BMS has been designed with the experience of over ten years of battery management involvement
• It uses internationally sourced components to ensure consistency, performance and reliability

Technical Specifications:
FEATURES

? High Density Solution: The battery pack is expertly constructed from premium materials and complies with all major safety and performance SPECIFICATIONS
? The core cell storage consists of sixteen new Lithium-Ion Phosphate (LFP) prismatic cells manufactured by Hefei Guoxuan Hi-Tech Power Energy Co., Ltd
? Guoxuan are the manufacturers of choice for leading German EV brands and well as many other electric vehicle manufacturers
? Innovative Battery Management System: The BMS has been designed with the experience of over ten years of battery management involvement
? It uses internationally sourced components to ensure consistency, performance and reliability
? The firmware is interactively developed and robust
? The flexibility of both CAN bus and RS485 communications allows for a wide range of applications
? The LCD display allows a clear overview of the battery state of charge and condition without the need for interfacing to a computer

SPECIFICATIONS

BASIC PARAMETERS
? Rated Voltage: 51.2 Volts
? Rated Capacity: 100 Amp Hours
? Rated Energy: 5120 Watt Hours
? Rating: 1C

OPERATING PARAMETERS
? Operating Voltage Range: 44.8 Volts – 56.0 Volts
? Charge Voltage Range: 55.2 Volts – 56.0 Volts (Typical Inverter Bulk/Float Charge can be set to 55.3V)
? Cut-O? Voltage: 44.8 Volts (Typical Inverter Cut O? can be set to 46.0V)
? Recommended Charge Current: 50 Amps
? Maximum Charge Current: 100 Amps
? Maximum Discharge Current: 100 Amps

PHYSICAL PARAMETERS
? Dimensions: 442mm (D) x 470mm (W) x 154mm (3.5U – high)
? Weight: 46kg
? Communication Ports: RS485 (For programming) , CAN bus, 2x Inverter Battery-Comm / Stacking Ports
? Display: LED and LCD with cursor keys for BMS Status and State of Charge
? Output Terminal: 2x M6 Bolts for Positive, 2x M6 Bolts for Negative
? Output Protection: Internal Electronic Circuit Disconnecter, 125 Amp DC Circuit Breaker

ENVIRONMENTAL
? Humidity: 5% – 95% Relative Humidity
? Charge Temperature Range: 0?C to 45?C
? Discharge Temperature Range: -20?C to 60?C
? Storage Temperature Range: -20?C to 45?C

SERVICE LIFE
? Cycle Life: More than 6000 Cycles at 50 Amp Discharge Rate and 80% Depth of Discharge
? Hardware Design Life: Fifteen Years
? Warranty: Five Years, based on the terms and conditions of the warranty policy

CERTIFICATION
? Safety: CE, EMC, TUV (IEC62619), UL1973
? Transportation: UN38.3

INSTALLATION
? Inverter Integration to BMS: Requires customised cable for each speci?c inverter brand, refer to manual
? Inverter Integration without BMS: Will emulate Lead Acid battery, can be optimised by altering inverter parameters
? BMS base protocol compatibility: Voltronic ?LIb” BMS protocol / Optional Pylontech BMS protocol
? Addressable Parallel Stacking: Battery packs can be paralleled up to sixteen addressable units per solution
? Installation Competency: Not consumer installable. Needs to be wired into inverter/UPS by a quali?ed electrical contractor with appropriate experience.
