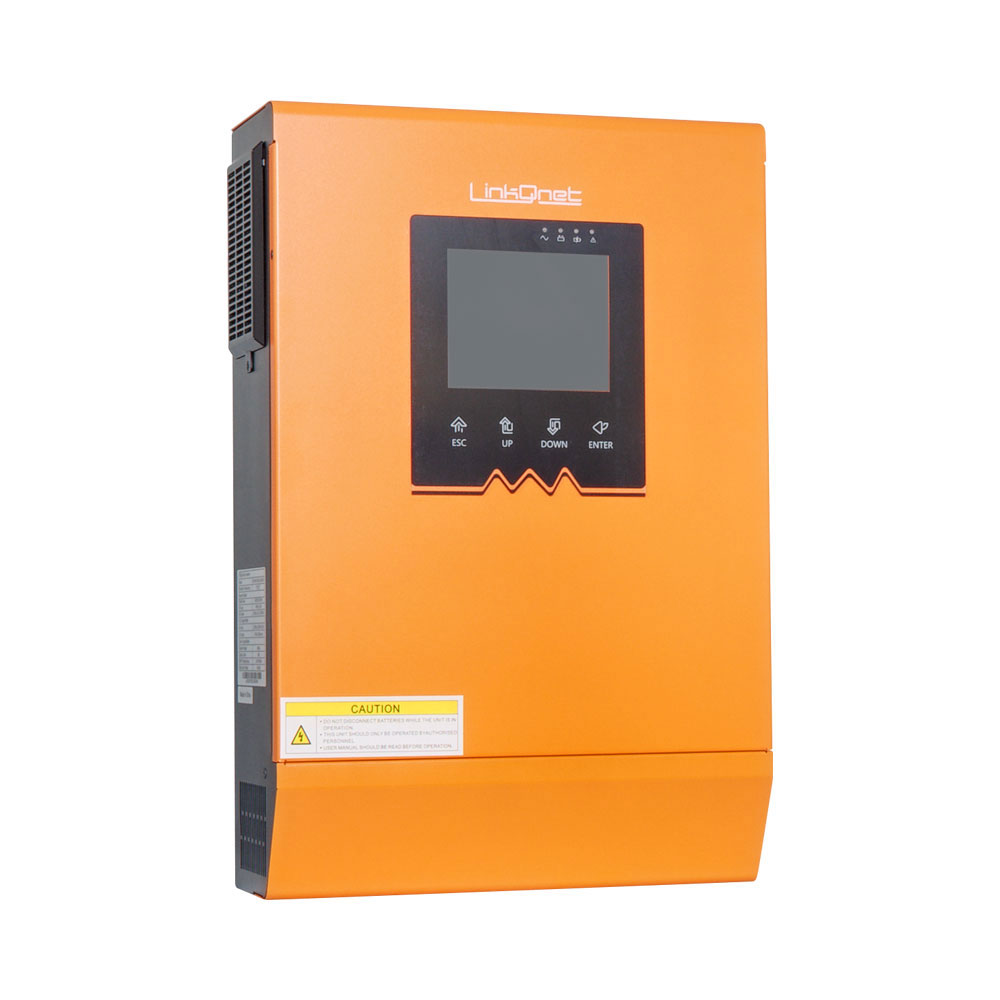

LinkQnet 3KVA 24V INVERTER WITH 4000W 500V MPPT

Description

The LinkQnet 3KVA 24V INVERTER WITH 4000W 500V MPPT is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 3kVA (3000VA) Pure Sinewave Output for clean and stable power
• Hybrid Off-Grid Design supports solar input and grid backup
• 24V Battery System with wide compatibility
• High Efficiency Performance for reduced power loss
• Fast Transfer Time for uninterrupted power supply

Technical Specifications:
FEATURES

? 3kVA (3000VA) Pure Sinewave Output for clean and stable power
? Hybrid Off-Grid Design supports solar input and grid backup
? 24V Battery System with wide compatibility
? High Efficiency Performance for reduced power loss
? Fast Transfer Time for uninterrupted power supply
? Advanced MPPT Solar Charging for maximum solar utilisation
? 3kVA (3000VA) Pure Sinewave Output for clean and stable power
? Hybrid Off-Grid Design supports solar input and grid backup
? 24V Battery System with wide compatibility
? High Efficiency Performance for reduced power loss
? Fast Transfer Time for uninterrupted power supply
? Advanced MPPT Solar Charging for maximum solar utilisation
? High Charging Current for faster battery recharge
? Supports Multiple Battery Types (Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom)
? RS-232 and USB-A Communication Ports for monitoring and control
? Built-in Protection Features including overload, short circuit, and battery protection
? Compact and Durable Design for easy installation
? Ideal for Home, Office, and Small Commercial UseHigh Charging Current for faster battery recharge
? Supports Multiple Battery Types (Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom)
? RS-232 and USB-A Communication Ports for monitoring and control
? Built-in Protection Features including overload, short circuit, and battery protection
? Compact and Durable Design for easy installation
? Ideal for Home, Office, and Small Commercial Use

SPECIFICATIONS

? Peak Power: 3000VA
? RMS Power: 3000W
? AC Voltage: 230V
? DC Voltage: 24V
? Transfer Time: 10ms
? AC Charge: 120A
? SCC Type: MPPT
? Ideal SCC Voltage: 120V ? 430V DC
? Max. PV OC Voltage: 500V DC
? Max. SCC Power: 4000W
? SCC Charge: 120A
? Max. Combined Charge: 120A
? Parallel Capable: No
? Communication: USB, RS485, CAN, Dry Contact
? Direct Bluetooth: No
? Wi-Fi Option: Yes
? 3G Option: No
? SNMP Option: No
? Battery Types: Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom
? BMS Support :Yes
? Warranty: Two Years ? Conditional
? Product Dimensions (H ? W ? D): 310 ? 467 ? 116mm
? Package Dimensions (H ? W ? D): 570 ? 375 ? 200mm
? Net Weight: 9.25kg
? Gross Weight: 10.85kg
