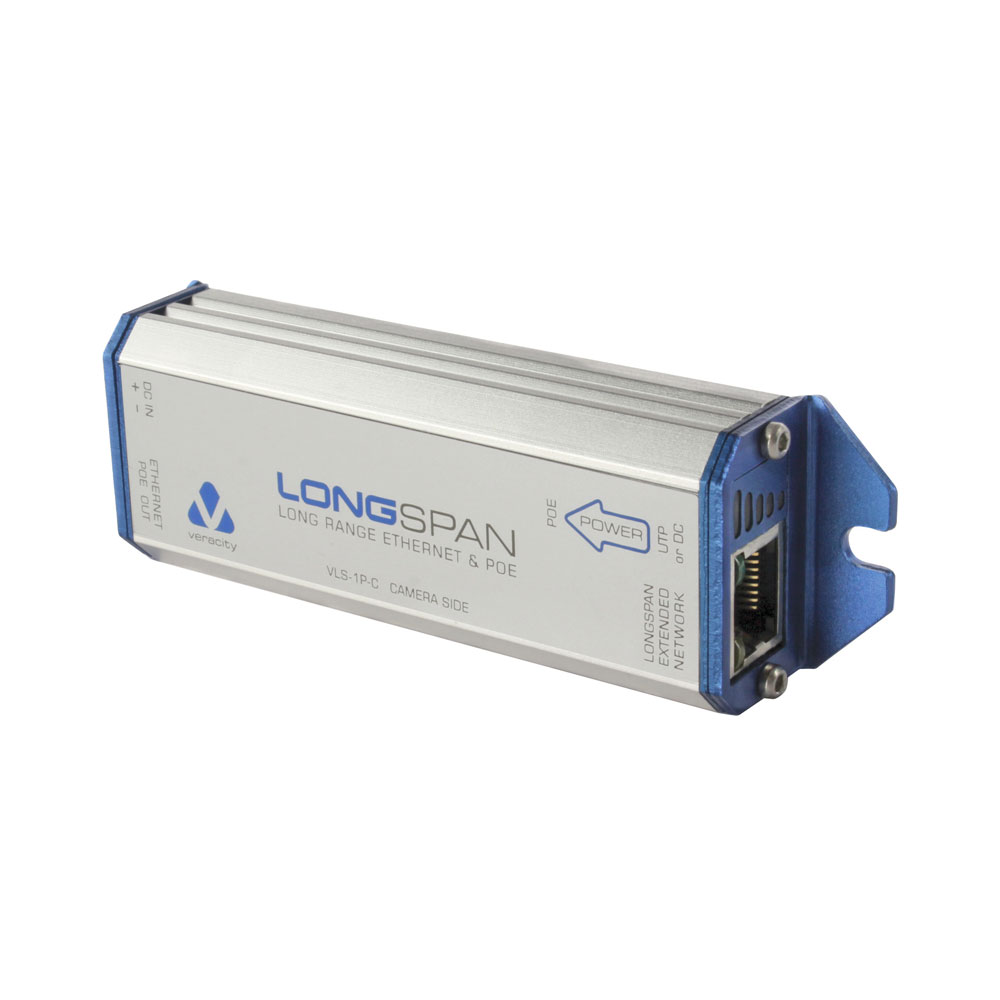

Veracity LONGSPAN POE CAMERA UNIT

Description

The Veracity LONGSPAN POE CAMERA UNIT is a high-performance solution from Veracity, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Camera-Side LONGSPAN Device – Connects directly to IP cameras for extended-distance installations
• Full-Bandwidth Ethernet – Supports 100Base-TX Ethernet up to 820m using standard network cable
• PoE and PoE+ Delivery – Provides up to 25W of power to connected IP cameras
• Plug-and-Play Operation – Automatically optimises performance without manual configuration
• SAFEVIEW LED Diagnostics – Displays link status and available power for easy installation

Technical Specifications:
FEATURES

? Camera-Side LONGSPAN Device – Connects directly to IP cameras for extended-distance installations
? Full-Bandwidth Ethernet – Supports 100Base-TX Ethernet up to 820m using standard network cable
? PoE and PoE+ Delivery – Provides up to 25W of power to connected IP cameras
? Plug-and-Play Operation – Automatically optimises performance without manual configuration
? SAFEVIEW LED Diagnostics – Displays link status and available power for easy installation
? Ideal for Remote Surveillance Deployments – Perfect for long cable runs in security and monitoring

SPECIFICATIONS

POWER
? PoE Out (Camera): IEEE 802.3af (PoE) or IEEE 802.3at (PoE+)

LONGSPAN INTERFACE
? Connector: RJ45
? Cable: CAT6, CAT5e, CAT3 or Other 1/2/4-Pair UTP
? Wiring: Patch Wiring Recommended, Other Wiring Auto-Corrected
? Rate: 200Mbps (100Mbps Full-Duplex) up to 820m (CAT6)
? Rate: 20Mbps (10Mbps Full-Duplex) up to 1050m (CAT6), Auto-Adapts

ETHERNET INTERFACE
? Connector: RJ45
? Cable: Patch or Crossover, Auto-Detected
? Rate: 100Base-TX or 10Base-T, Full-Duplex with Auto-Negotiation

LED INDICATORS
? Ethernet RJ45: Yellow – Link/Activity, Green – Power Good
? LONGSPAN Link RJ45: Yellow – Link/Activity, Green – 10/100Mbps
? PoE: Power Available (5/10/15/20/25W)
? PoE and Link Status: Green/Amber, Diagnostic Codes (Red)

PHYSICAL / ENVIRONMENTAL
? Dimensions: 120 ? 36 ? 23mm (Including Brackets)
? Weight: 100g
? Operating Temperature: -40~70?C
? Relative Humidity: Up to 85% Non-Condensing
? Compliance: FCC, CE, RoHS, UL, UKCA, BS EN 50121-4 (Rail + Metro)
