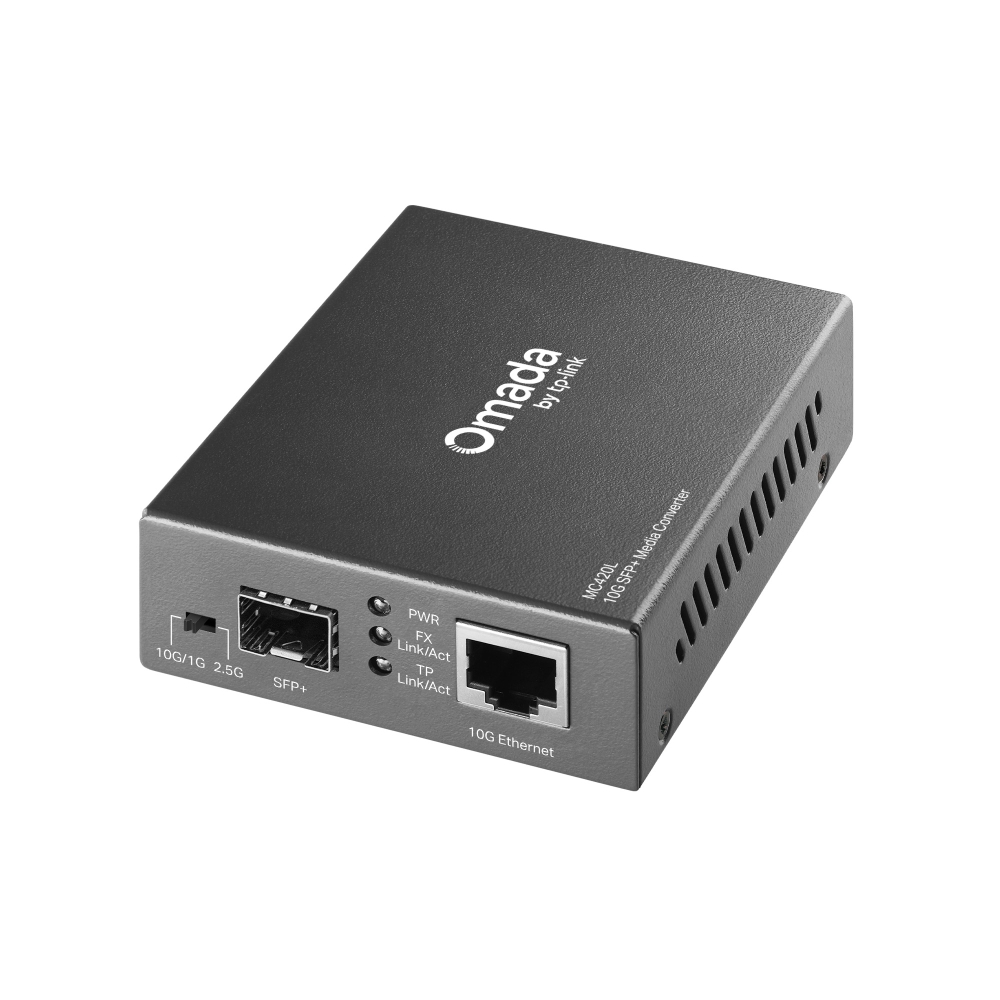

TP-Link OMADA 10GB TO SFP+ MEDIA CONVERTER

Description

The TP-Link OMADA 10GB TO SFP+ MEDIA CONVERTER is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 10Gbps Media Conversion ? Converts between 10GBASE-T copper and SFP+ fibre for high-speed networking
• Multi-Gigabit RJ45 Port ? Supports 1G / 2.5G / 5G / 10Gbps auto-negotiation with Auto-MDI/MDIX
• SFP+ Slot ? Supports multi-mode and single-mode fibre modules for flexible deployment
• Long-Distance Extension ? Extends network reach over fibre depending on SFP module used
• Hot-Swappable Design ? Easily replace or upgrade SFP modules without downtime

Technical Specifications:
FEATURES

? 10Gbps Media Conversion ? Converts between 10GBASE-T copper and SFP+ fibre for high-speed networking
? Multi-Gigabit RJ45 Port ? Supports 1G / 2.5G / 5G / 10Gbps auto-negotiation with Auto-MDI/MDIX
? SFP+ Slot ? Supports multi-mode and single-mode fibre modules for flexible deployment
? Long-Distance Extension ? Extends network reach over fibre depending on SFP module used
? Hot-Swappable Design ? Easily replace or upgrade SFP modules without downtime
? Flexible Installation ? Desktop use or rackmount via TP-Link MC1400 chassis support

SPECIFICATIONS

? Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
? Ports: 1? SFP+ Port, 1? 1G/2.5G/5G/10Gbps RJ45 Port
? RJ45 Features: Auto-Negotiation, Auto-MDI/MDIX
? Duplex Mode: Half-Duplex / Full-Duplex Auto-Negotiation
? Transmission Media: Multi-Mode / Single-Mode Fibre, Twisted Pair
? Fibre Support: 10GBASE-SR/LR/LRM (via SFP+ Module)
? Copper Support: 1000BASE-T / 2.5GBASE-T / 5GBASE-T / 10GBASE-T
? Transmission Distance: Depends on SFP Module
? Wavelength: Depends on SFP Module
? Power Supply: External Power Adapter (9V 0.6A)
? Maximum Power Consumption: 4.12W
? LED Indicators: PWR, Link/Act
? Installation: Desktop or Rackmount (via MC1400 Chassis)
? Dimensions: 94.5 ? 73 ? 27mm
? Safety & Emission: UL, RoHS
? Operating Temperature: 0~50?C
? Storage Temperature: -40~70?C
? Operating Humidity: 10~90% RH, Non-Condensing
? Storage Humidity: 5~90% RH, Non-Condensing
