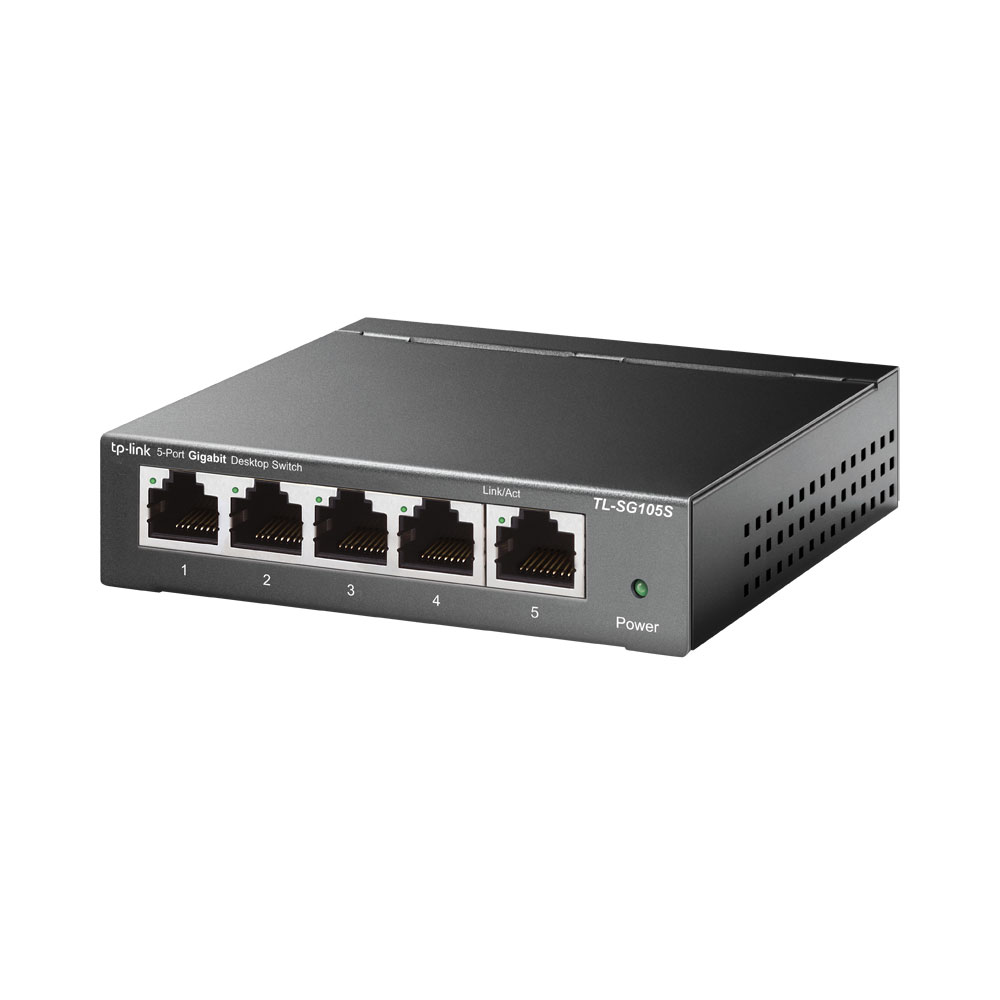

TP-Link 5-PORT GIGABIT DESKTOP SWITCH

Description

The TP-Link 5-PORT GIGABIT DESKTOP SWITCH is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 5x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS and IGMP Snooping function

Technical Specifications:
FEATURES

? 5x 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
? Green Ethernet technology saves power consumption
? IEEE 802.3x flow control provides reliable data transfer
? Steel housing, desktop or wall-mounting design
? Support 802.1p/DSCP QoS and IGMP Snooping function
? Plug and play, no configuration needed

SPECIFICATIONS

HARDWARE FEATURES
? Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
? Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
? Fan Quantity: Fanless
? Power Consumption: Maximum: 2.3W (220V/50Hz)
? External Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
? LED Indicator: System Power
? Link/Act indicators per port built into each RJ-45 port
? Dimensions (W x D x H): 100 x 98 x 25mm
? Max Heat Dissipation: 7.83 BTU/h

PERFORMANCE
? Packet Forwarding Rate: 7.4Mpps
? MAC Address Table: 2K
? Packet Buffer Memory: 1Mb
? Jumbo Frame: 16KB

SOFTWARE FEATURES
? Advanced Features: Green Technology
? 802.3X Flow Control
? 802.1P/DSCP QoS (for V2 and later version)
? IGMP Snooping
? Transfer Method: Store and Forward

OTHERS
? Certification: CE, FCC, RoHS
? Environment: Operating Temperature: 0?C~40?C
? Storage Temperature: -40?C~70?C
? Operating Humidity: 10% ~ 90% non-condensing
? Storage Humidity: 5%~90% non-condensing
