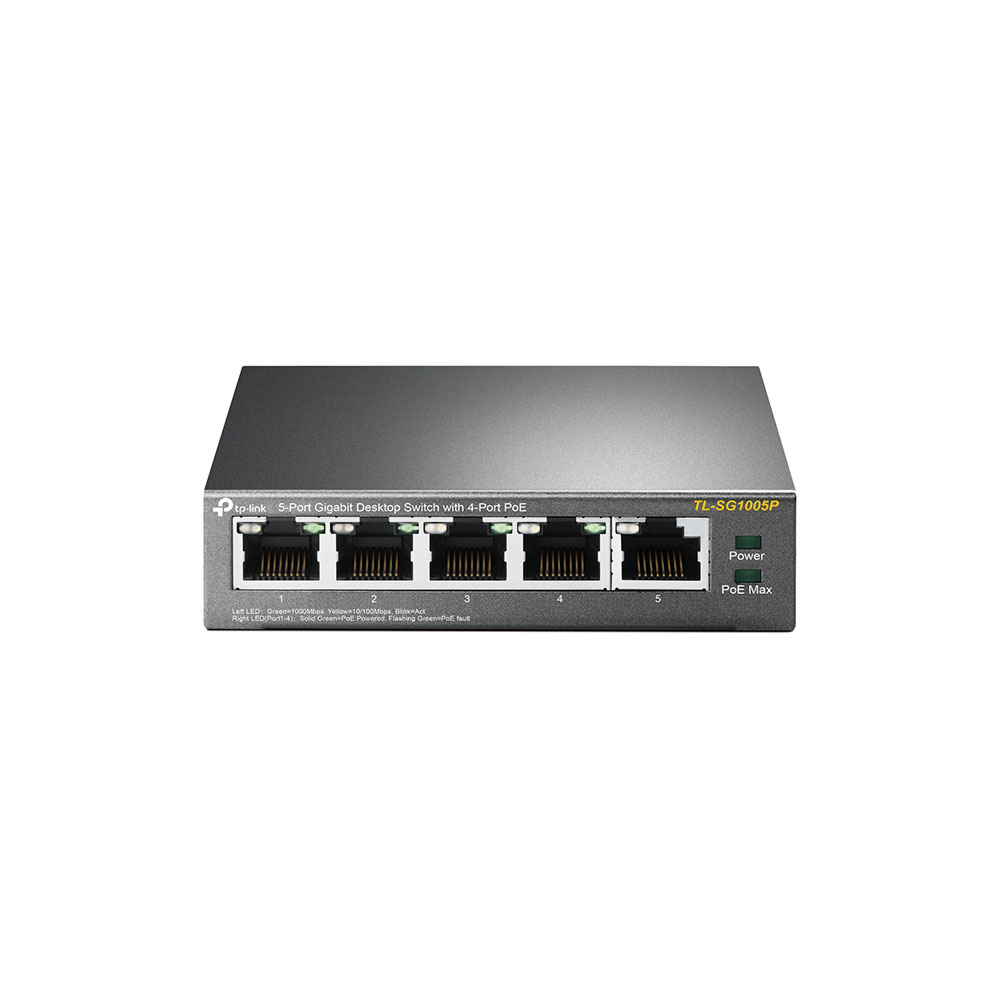

TP-Link 5-PORT GBE 4-PORT POE DESKTOP SWITCH

Description

The TP-Link 5-PORT GBE 4-PORT POE DESKTOP SWITCH is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 5 10/100/1000Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 15.4W for each PoE port

Technical Specifications:
FEATURES

? 5 10/100/1000Mbps RJ45 ports
? With four PoE ports, transfers data and power on one single cable
? Working with IEEE 802.3af compliant PDs, expands home and office network
? 802.1p/DSCP QoS enable smooth latency-sensitive traffic
? Supports PoE Power up to 15.4W for each PoE port
? Supports PoE Power up to 56W for all PoE ports
? Requires no configuration and installation

SPECIFICATIONS

HARDWARE FEATURES
? Interface: 5 10/100/1000Mbps RJ45 Ports
? AUTO Negotiation/AUTO MDI/MDIX
? Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
? EIA/TIA-568 100? STP (maximum 100m)
? 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
? EIA/TIA-568 100? STP (maximum 100m)
? 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
? EIA/TIA-568 100? STP (maximum 100m)
? Fan Quantity: Fanless
? External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
? PoE Ports (RJ45)Standard: 802.3 af compliant
? PoE Ports: Port1- Port4
? Power Supply: 56W
? Backbound Bandwidth10Gbps
? Mac Address Table2K
? Dimensions (WxDxH): 99.8 x 98 x 25mm
? Max Power Consumption: 3.95W(220/50Hz. no PD connected)
? 64.44W(220/50Hz. with 56W PD connected)
? Max Heat Dissipation: 13.48BTU/h(no PD connected)
? 219.87BTU/h(with 56W PD connected)

SOFTWARE FEATURES
? Advanced Features: Compatible With IEEE 802.3af Compliant PDs
? Priority Function
? Mac Address Auto-Learning And Auto-Aging
? IEEE 802.3x Flow Control
? 802.1p/DSCP QoS
? IGMP Snooping
? Transfer Method: Store-And-Forward

OTHERS
? Certification: FCC, CE, RoHS
? Consumption: 4.26 watts (max. no PD connected)
? 63.31 watts (max. with 56w PD connected)
