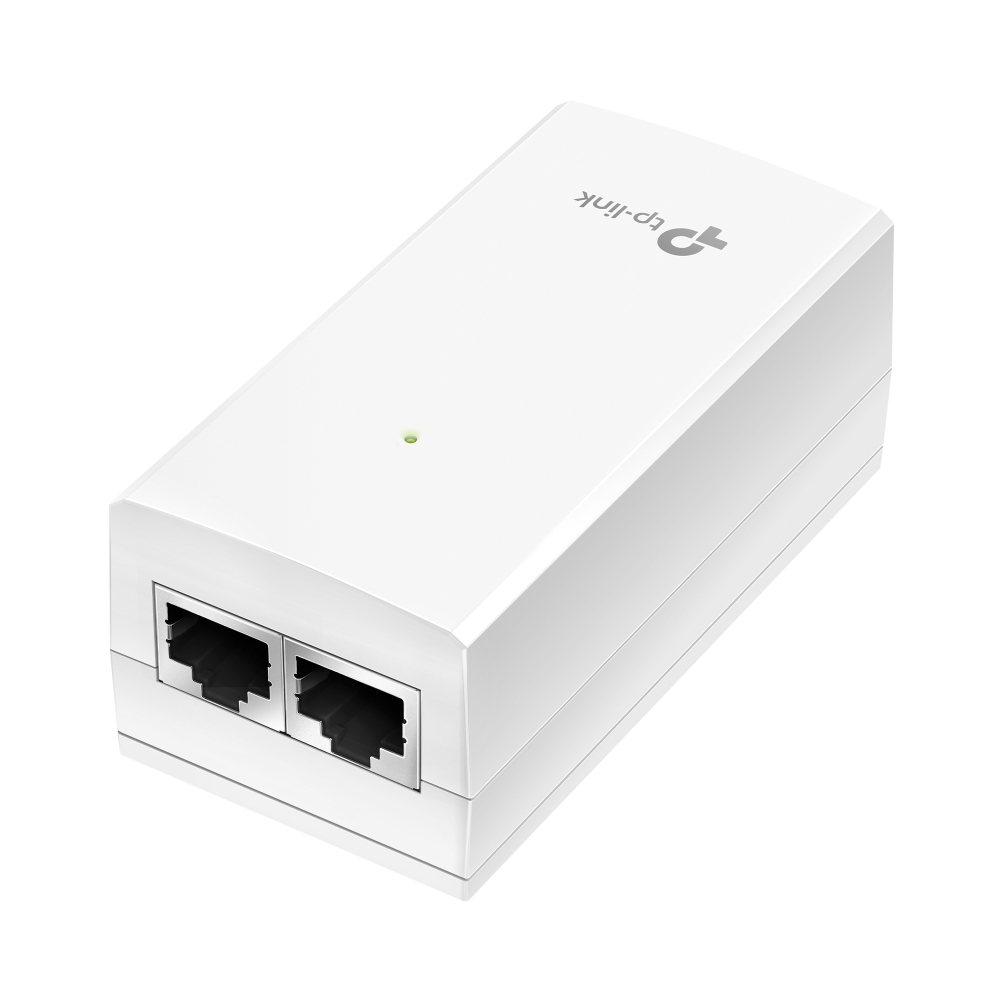

TP-Link 48V PASSIVE POE ADAPTER

Description

The TP-Link 48V PASSIVE POE ADAPTER is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 48V Passive PoE Output – Delivers up to 18W power for compatible devices
• Gigabit Ethernet Support – Ensures high-speed data transmission
• Power + Data Over One Cable – Simplifies installation and reduces cabling
• Plug-and-Play Operation – No configuration required
• Auto Power Detection – Automatically determines device power requirements

Technical Specifications:
FEATURES

? 48V Passive PoE Output – Delivers up to 18W power for compatible devices
? Gigabit Ethernet Support – Ensures high-speed data transmission
? Power + Data Over One Cable – Simplifies installation and reduces cabling
? Plug-and-Play Operation – No configuration required
? Auto Power Detection – Automatically determines device power requirements
? Compact Wall-Mount Design – Flexible and space-saving installation

SPECIFICATIONS

? Interface: 1? 10/100/1000Mbps RJ45 Shielded Data In Port, 1? 10/100/1000Mbps RJ45 Shielded Passive PoE Port, 1? 100~240V AC Power Input
? Network Media: 10BASE-T (UTP Cat 3/4/5, Max. 100m), 100BASE-TX (UTP Cat 5/5e, Max. 100m), 1000BASE-T (UTP Cat 5/5e/6, Max. 100m)
? Output Voltage: 48V DC (Max. 18W)
? LED Indicator: PWR
? Dimensions: 85.8 ? 43.9 ? 35mm
? Certification: FCC, CE, RoHS
? Operating Temperature: 0~40?C
? Storage Temperature: -40~70?C
? Operating Humidity: 10~90% RH, Non-Condensing
? Storage Humidity: 5~90% RH, Non-Condensing
