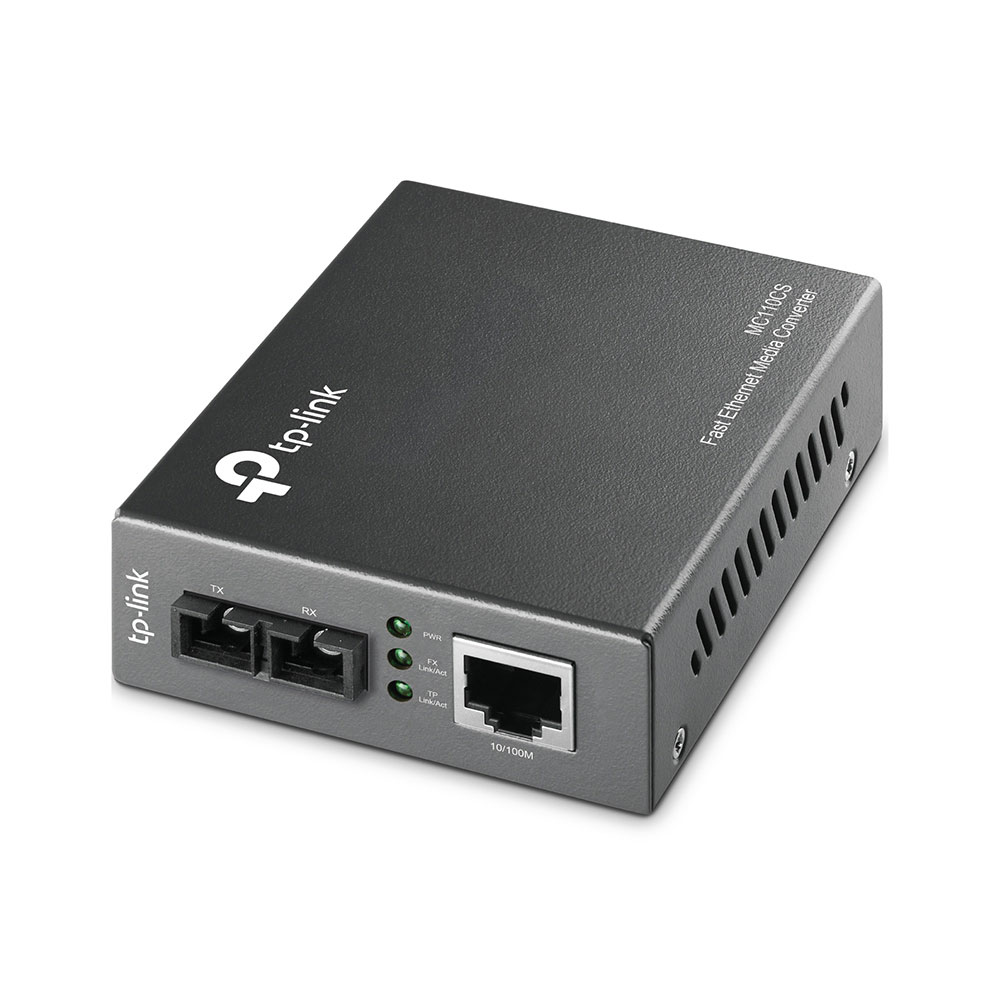

TP-Link 100MBIT RJ45 TO SINGLE-MODE SC FIBRE

Description

The TP-Link 100MBIT RJ45 TO SINGLE-MODE SC FIBRE is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Fast Ethernet Media Conversion – Converts 10/100Mbps Ethernet to single-mode fibre for long-distance connectivity
• Long-Range Fibre Transmission – Supports fibre distances up to 20km for extended network coverage
• Auto-Negotiation Support – Automatically detects and adjusts optimal speed and duplex mode
• Auto MDI/MDIX Support – Eliminates the need for crossover cables for easier deployment
• Reliable Data Transmission – IEEE 802.3x flow control ensures stable and efficient data transfer

Technical Specifications:
FEATURES

? Fast Ethernet Media Conversion – Converts 10/100Mbps Ethernet to single-mode fibre for long-distance connectivity
? Long-Range Fibre Transmission – Supports fibre distances up to 20km for extended network coverage
? Auto-Negotiation Support – Automatically detects and adjusts optimal speed and duplex mode
? Auto MDI/MDIX Support – Eliminates the need for crossover cables for easier deployment
? Reliable Data Transmission – IEEE 802.3x flow control ensures stable and efficient data transfer
? Plug-and-Play – Simple installation with no configuration required

SPECIFICATIONS

STANDARDS AND PROTOCOLS
? IEEE 802.3
? IEEE 802.3u
? IEEE 802.3x

BASIC FUNCTION
? Auto-Negotiation of Half-Duplex / Full-Duplex Transfer Mode
? Full Duplex Flow Control (IEEE 802.3x)
? Half Duplex Flow Control (Back Pressure)
? Extends Fibre Distance up to 20km

PORTS
? 1? 100M SC/PC Port
? 1? 10/100M RJ45 Port (Auto MDI/MDIX)

WAVE LENGTH
? 1310nm

NETWORK MEDIA 10BASE-T
? UTP CAT3, 4, 5 Cable (Max. 100m)
? EIA/TIA-568 100? STP (Max. 100m)

NETWORK MEDIA 100BASE-TX
? UTP CAT5, 5e Cable (Max. 100m)
? EIA/TIA-568 100? STP (Max. 100m)

NETWORK MEDIA 100BASE-FX
? Single-Mode Fibre

LED INDICATORS
? PWR
? Link/Act

DIMENSIONS (W ? D ? H)
? 94.5 ? 73 ? 27mm

POWER SUPPLY
? External Power Supply

MAX. POWER CONSUMPTION
? 2.4W

SAFETY AND EMISSION
? FCC
? CE
? RoHS
