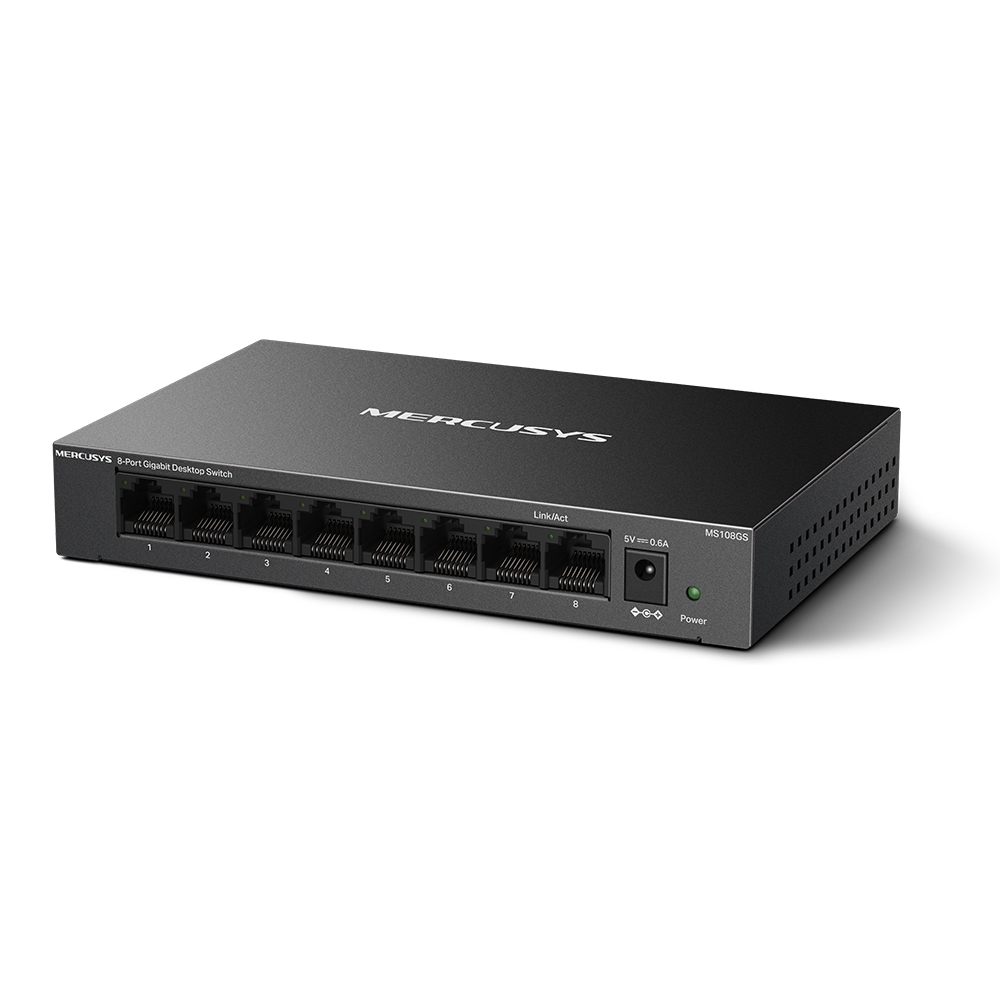

Mercusys 8PORT GIGABIT DESKTOP SWITCH

Description

The Mercusys 8PORT GIGABIT DESKTOP SWITCH is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 8? Gigabit RJ45 Ports – High-speed wired connectivity for multiple devices
• Auto-Negotiation & Auto MDI/MDIX – Seamless compatibility with connected devices
• Plug-and-Play Operation – No configuration required for quick setup
• Steel Housing Design – Durable construction with efficient heat dissipation
• Fanless Operation – Silent performance ideal for home and office use

Technical Specifications:
FEATURES

? 8? Gigabit RJ45 Ports – High-speed wired connectivity for multiple devices
? Auto-Negotiation & Auto MDI/MDIX – Seamless compatibility with connected devices
? Plug-and-Play Operation – No configuration required for quick setup
? Steel Housing Design – Durable construction with efficient heat dissipation
? Fanless Operation – Silent performance ideal for home and office use
? Green Ethernet Technology – Reduces power consumption for energy efficiency

SPECIFICATIONS

? Transfer Method: Store-and-Forward
? Interfaces: 8? 10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX
? Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p
? Data Rates: 10/100/1000Mbps (Half Duplex), 20/200/2000Mbps (Full Duplex)
? Switch Capacity: 16Gbps
? MAC Address Table: 8K, Auto-Learning, Auto-Aging
? Buffer Capacity: 4Mbit
? Jumbo Frame: 15KB
? Flow Control: Yes
? Fanless: Yes
? LED Indicators: Power, Link/Act
? Power Supply: 5V 0.6A
? Max. Power Consumption: 4.22W
? Max. Heat Dissipation: 14.348BTU/h
? Dimensions: 158 ? 99.1 ? 25.2mm
? Operating Temperature: 0~40?C
? Storage Temperature: -40~70?C
? Operating Humidity: 10~90% RH, Non-Condensing
? Storage Humidity: 5~95% RH, Non-Condensing
? Certification: CE, RoHS
