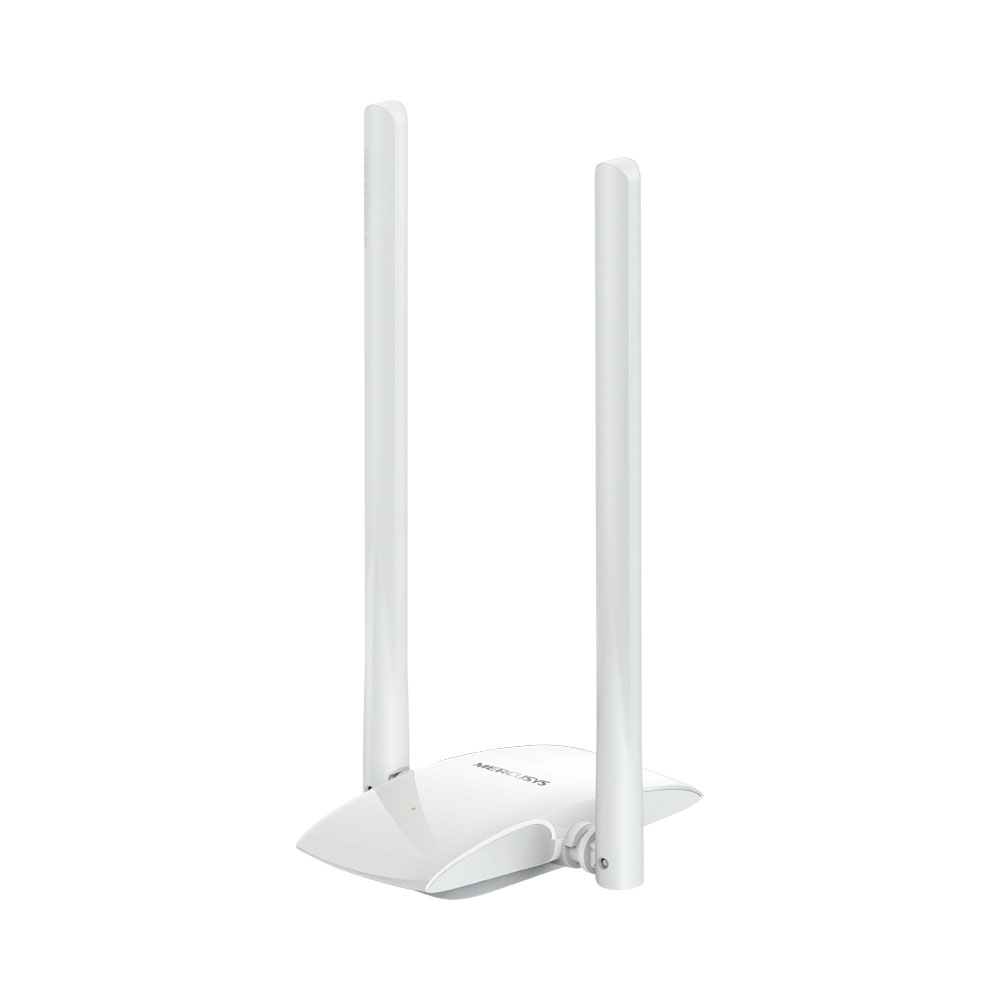

Mercusys 300MBPS HIGH GAIN WIRELESS USB ADAPTER

Description

The Mercusys 300MBPS HIGH GAIN WIRELESS USB ADAPTER is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 300Mbps Wireless Speed – Enjoy stable Wi-Fi performance for everyday internet activities such as browsing, streaming, and video calls
• 5dBi High-Gain Antenna – External antenna significantly improves signal reception and transmission for stronger connectivity
• Adjustable Multi-Directional Antenna – Easily rotate and position the antenna for the best wireless signal
• Flexible USB Extension Cable – Allows convenient placement of the adapter to achieve optimal reception
• Enhanced Wireless Security – Supports WPA/WPA2 encryption to protect your network from unauthorised access

Technical Specifications:
FEATURES

? 300Mbps Wireless Speed – Enjoy stable Wi-Fi performance for everyday internet activities such as browsing, streaming, and video calls
? 5dBi High-Gain Antenna – External antenna significantly improves signal reception and transmission for stronger connectivity
? Adjustable Multi-Directional Antenna – Easily rotate and position the antenna for the best wireless signal
? Flexible USB Extension Cable – Allows convenient placement of the adapter to achieve optimal reception
? Enhanced Wireless Security – Supports WPA/WPA2 encryption to protect your network from unauthorised access
? Easy Setup for Windows – Quick installation with driver support for Windows operating systems

SPECIFICATIONS

ANTENNA TYPE
? External

DIMENSIONS (W ? D ? H)
? 113.2 ? 63.8 ? 21.7mm (Without Antennas)
? 113.2 ? 100.5 ? 201.1mm (With Vertical Antennas)

WIRELESS STANDARDS
? IEEE 802.11n
? IEEE 802.11g
? IEEE 802.11b

FREQUENCY
? 2.400~2.4835GHz

SIGNAL RATE
? 11n: up to 300Mbps (Dynamic)
? 11g: up to 54Mbps (Dynamic)
? 11b: up to 11Mbps (Dynamic)

RECEPTION SENSITIVITY
? 300M: -68dBm @10% PER
? 270M: -68dBm @10% PER
? 144M: -71dBm @10% PER
? 130M: -71dBm @10% PER
? 54M: -74dBm @10% PER
? 11M: -86dBm @8% PER
? 6M: -90dBm @10% PER
? 1M: -94dBm @8% PER

TRANSMISSION POWER
? ?20dBm (EIRP)

WIRELESS SECURITY
? WEP
? WPA/WPA2
? WPA-PSK/WPA2-PSK

INTERFACE
? Micro USB2.0

CERTIFICATIONS
? CE
? RoHS

ENVIRONMENT
? Operating Temperature: 0~40?C
? Storage Temperature: -40~70?C
? Operating Humidity: 10~90% Non-Condensing
? Storage Humidity: 5~90% Non-Condensing

SYSTEM REQUIREMENTS
? Windows 10 / 8.1 / 8 / 7 / XP (32/64bit)
