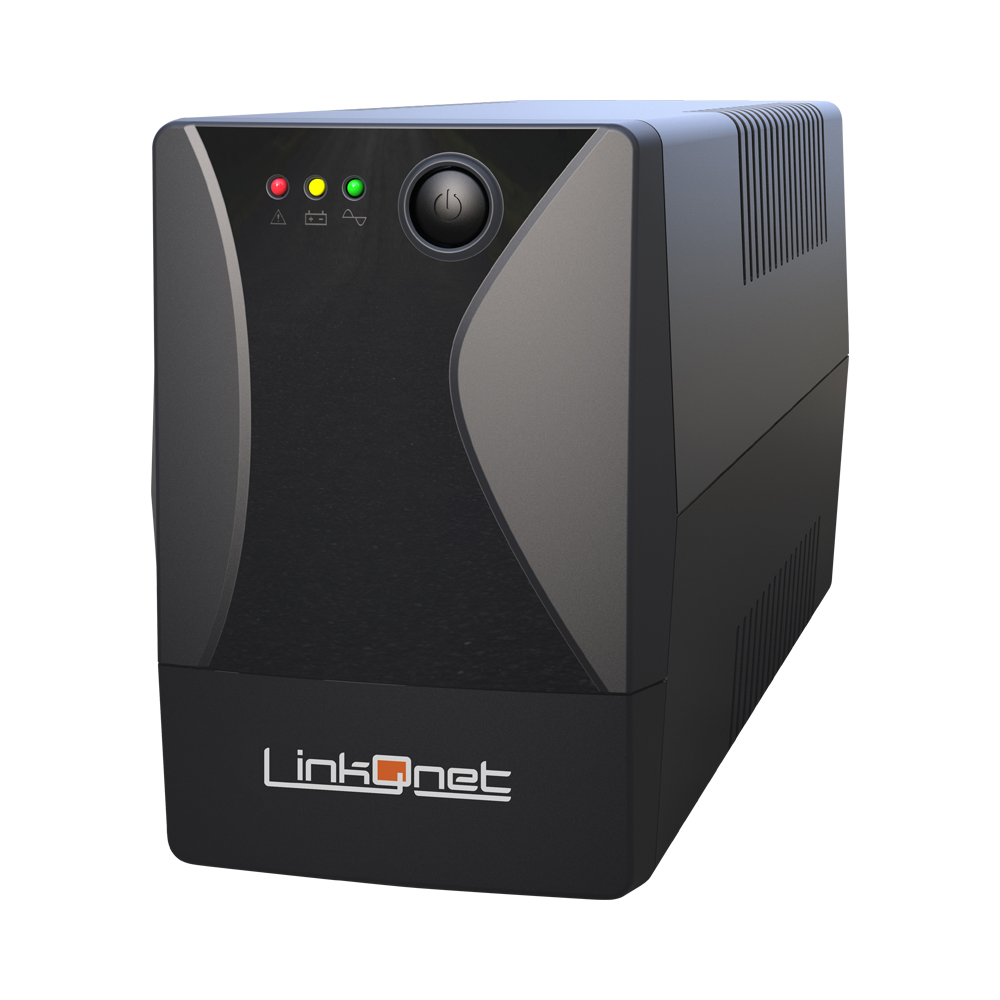

LinkQnet 2000VA/1200W,230AC/50HZ,LED DISPLAY,9AH

Description

The LinkQnet 2000VA/1200W,230AC/50HZ,LED DISPLAY,9AH is a high-performance solution from LinkQnet, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Comprehensive Power Protection – Protects connected devices from surges, spikes and power fluctuations
• Automatic Voltage Regulation (AVR) – Boost and buck AVR stabilises voltage for reliable power output
• Built-In Self-Diagnostics – Monitors system health to ensure reliable UPS operation
• Cold Start Capability – Allows the UPS to start directly from battery power when mains power is unavailable
• Off-Mode Charging – Charges the battery even when the UPS is switched off

Technical Specifications:
FEATURES

? Comprehensive Power Protection – Protects connected devices from surges, spikes and power fluctuations
? Automatic Voltage Regulation (AVR) – Boost and buck AVR stabilises voltage for reliable power output
? Built-In Self-Diagnostics – Monitors system health to ensure reliable UPS operation
? Cold Start Capability – Allows the UPS to start directly from battery power when mains power is unavailable
? Off-Mode Charging – Charges the battery even when the UPS is switched off
? Auto Restart – Automatically restarts connected equipment once AC power is restored

SPECIFICATIONS

CAPACITY
? 2000VA / 1200W

INPUT

VOLTAGE
? 230VAC

VOLTAGE RANGE
? 140~300VAC

FREQUENCY RANGE
? 50Hz / 60Hz (Auto-Sensing)

OUTPUT

AC VOLTAGE REGULATION (BATTERY MODE)
? 220V / 230V / 240V ?10%

FREQUENCY RANGE (BATTERY MODE)
? 50Hz ?1Hz or 60Hz ?1Hz

TRANSFER TIME
? Typical 4~8ms, 13ms Max.

WAVEFORM (BATTERY MODE)
? Simulated Sinewave

BATTERY

BATTERY VOLTAGE
? 24V

BATTERY NUMBER
? 2? 9Ah

MAX. CHARGE CURRENT
? 1A

INDICATORS

AC MODE
? Green Light

BATTERY MODE
? Orange Flash

FAULT
? Red Light

PROTECTION

FULL PROTECTION
? Short Circuit
? Overload
? Over-Charge
? Over Discharge

ALARM

BATTERY MODE
? Sounding Every 10 Seconds

LOW BATTERY
? Sounding Every Second

OVERLOAD
? Sounding Every 0.5 Seconds

FAULT
? Continuous Sounding

DIMENSIONS (W ? D ? H)
? 345 ? 148 ? 189mm

HUMIDITY
? 0~90% RH @ 0~40?C (Non-Condensing)

NOISE LEVEL
? Less than 40dB
