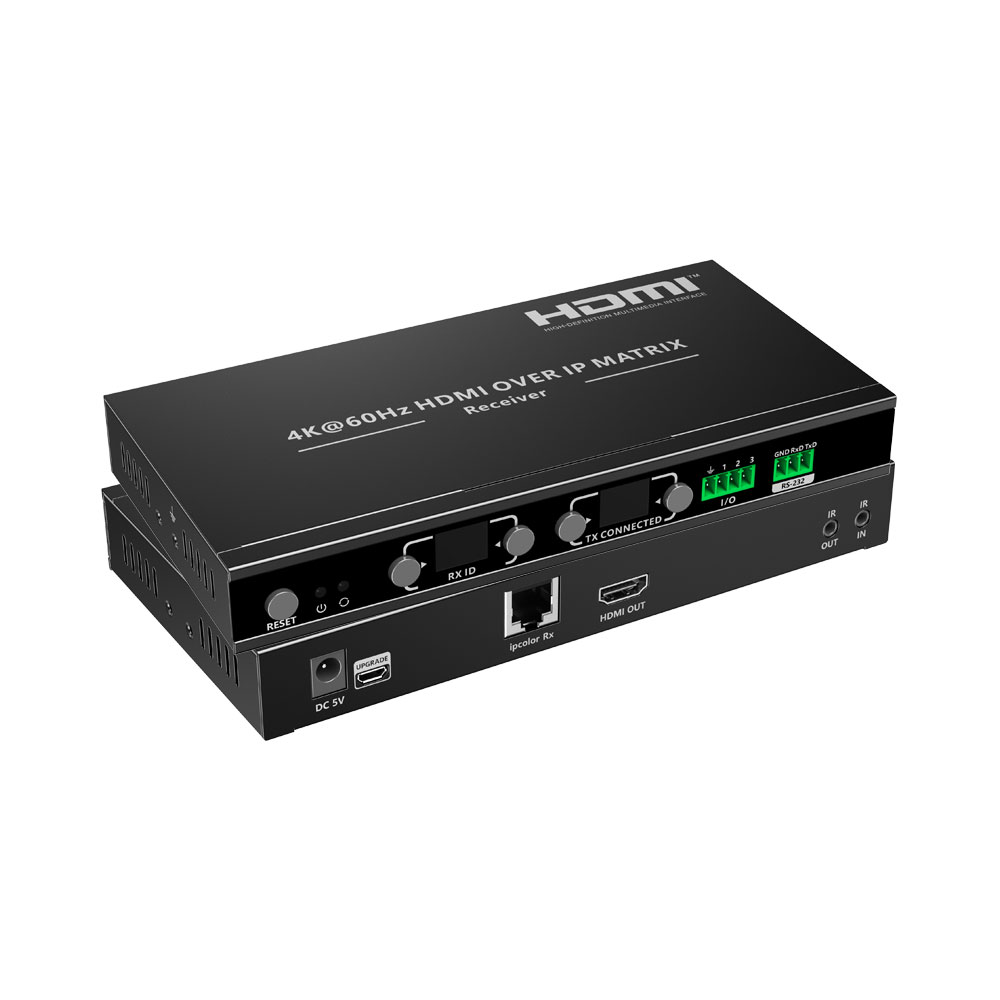

Lenkeng HDMI MATRIX EXTENDER RECEIVER

Description

The Lenkeng HDMI MATRIX EXTENDER RECEIVER is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Built on ipcolor STREAM technology to deliver high-definition and low-latency transmission
• Supports up to 3840?2160 @60Hz resolution, backwards compatible
• Compatible with CAT5e/6 or higher-level networking cables, transmission distance of CAT6 cable is 120m
• Supports One-to-One or Many-to-Many connections through a Gigabit switch
• Supports RS232 passthrough and control

Technical Specifications:
FEATURES

? Built on ipcolor STREAM technology to deliver high-definition and low-latency transmission
? Supports up to 3840?2160 @60Hz resolution, backwards compatible
? Compatible with CAT5e/6 or higher-level networking cables, transmission distance of CAT6 cable is 120m
? Supports One-to-One or Many-to-Many connections through a Gigabit switch
? Supports RS232 passthrough and control
? The transmitter supports HDMI loop out
? Supports bi-directional IR pass-back (20~60KHz)
? Supports IR learning remote and control device by App
? Supports I/O interface control
? Supports POE (Power over Ethernet)
? Creating multi-screen splicing with up to 5×5 (also includes: 1×1/1×2/1×3/1×4/1×5/2×1/2×2/2×3/2×4/2×5/3×1/3×2/3×3/3×4/3×5/4×1/4×2/4×3/4×4/4×5/5×1/5×2/5×3/5×4/5×5) video wall through switch and controlled by App
? Supports 256 signal source inputs and 256 signal outputs, providing flexible Many-to-Many matrix configuration (requires App control operation while connecting more than 100 TX-to-RXs)
? Firmware upgrading via Micro USB port
? Lightning protection, surge protection, ESD protection
? Supports stable 24/7 operation

SPECIFICATIONS

? HDMI Length: ?5m
? Maximum Transfer Rate: 18Gbps
? Compatibility: HDMI 2.0?HDCP 1.4 / HDCP 2.2
? Resolutions: 4096?2160 @24/30Hz, 3840?2160 @24/30/50/60Hz, 1080p @50/60Hz,720p @50/60Hz, 1920?1200 @60Hz, 2560?1440 @60Hz
? Connection Types:
One-to-One
Many-to-Many
Switch Cascading
? Transmission Distance: CAT5 80m / CAT5e 100m / CAT6 120m
? Transmission Latency:
4K @60Hz (130~200ms)
1080p @60Hz (70~130ms)
? HDMI Output: LPCM 2.0
? IR Receiving Range: ?5m
? IR Frequency: 20kHz~60kHz
? RS232 (GND/RXD/TXD): Default Baud Rate:
115200
Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
? Power Supply: TX/RX: DC 5V 2A (Alternative)
? Power Consumption:
TX ?5.5W
RX ?3.5W
? Working Temperature: -20~60?C
? Storage Temperature: -30~70?C
? Humidity: 0~90% RH (No Condensation?
? Housing: Metal
? Weight:
TX?523g
RX?514g
? Colour: Black
? Dimensions (L ? W ? H): 191 ? 96 ? 25mm
? Protection:
ESD Protection
1a Contact Discharge Level 2 (?4KV)
1b Air Discharge Level 3 (?8KV)
Implementation of the Standard: IEC61000-4-2
Lightning Protection, Surge Protection
