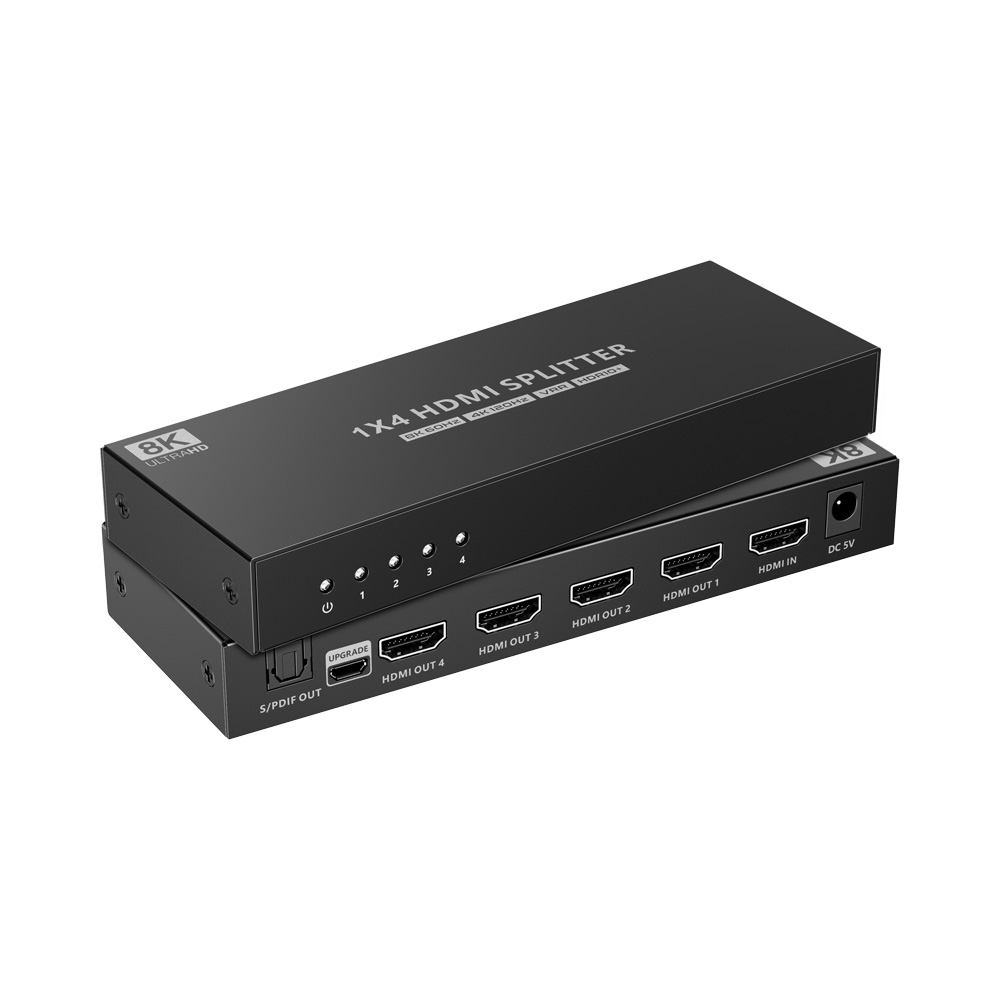

Lenkeng 8K HDMI 1X4 SPLITTER

Description

The Lenkeng 8K HDMI 1X4 SPLITTER is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 8K @60Hz and 4K @120Hz
• Free Sync and G-Sync VRR (Variable Refresh Rate)
• HDR10+
• S/PDIF Out
• IR Passback Function

Technical Specifications:
FEATURES

? 8K @60Hz and 4K @120Hz
? Free Sync and G-Sync VRR (Variable Refresh Rate)
? HDR10+
? S/PDIF Out
? IR Passback Function
? EDID Management

SPECIFICATIONS

? HDMI Input: 1? HDMI
? HDMI Output: 4? HDMI
? Compatibility: HDMI 2.1, HDMI 2.0, HDMI 1.4; HDCP 2.3, HDCP 2.2, HDCP 1.4
? Maximum Transmission Rate: 48Gbps
? Supported Resolutions: 7680?4320 @24/25/30/50/60Hz, 3840?2160 @24/25/30/50/60/120Hz, 1080p @24/25/30/50/60/120Hz, 720p @50/60/100/120Hz
? Video Signal Features: EDID Passthrough, Auto Downscaling, HDR10 / HDR10+ / Dolby Vision, HDMI 3D, HDMI CEC, VRR (FreeSync / G?Sync)
? Audio Output: S/PDIF Output and HDMI Output – Supports Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD, LPCM 7.1CH, Dolby Digital 7.1CH, etc.
? Power Supply: DC 5V 2A
? Power Consumption: <6W
? Operating Temperature: ?20~60?C
? Storage Temperature: ?30~70?C
? Humidity Range: 0~90% RH (Non?Condensing)
? Housing Material: Metal
? Colour: Black
? Dimensions (L ? W ? H): 160 ? 58 ? 16.5mm
? Weight: 252g
? Protection: ESD Protection (Contact Discharge ?4kV, Air Discharge ?8kV, Implementation of the Standard IEC 61000?4-2), Lightning Protection, Surge Protection
