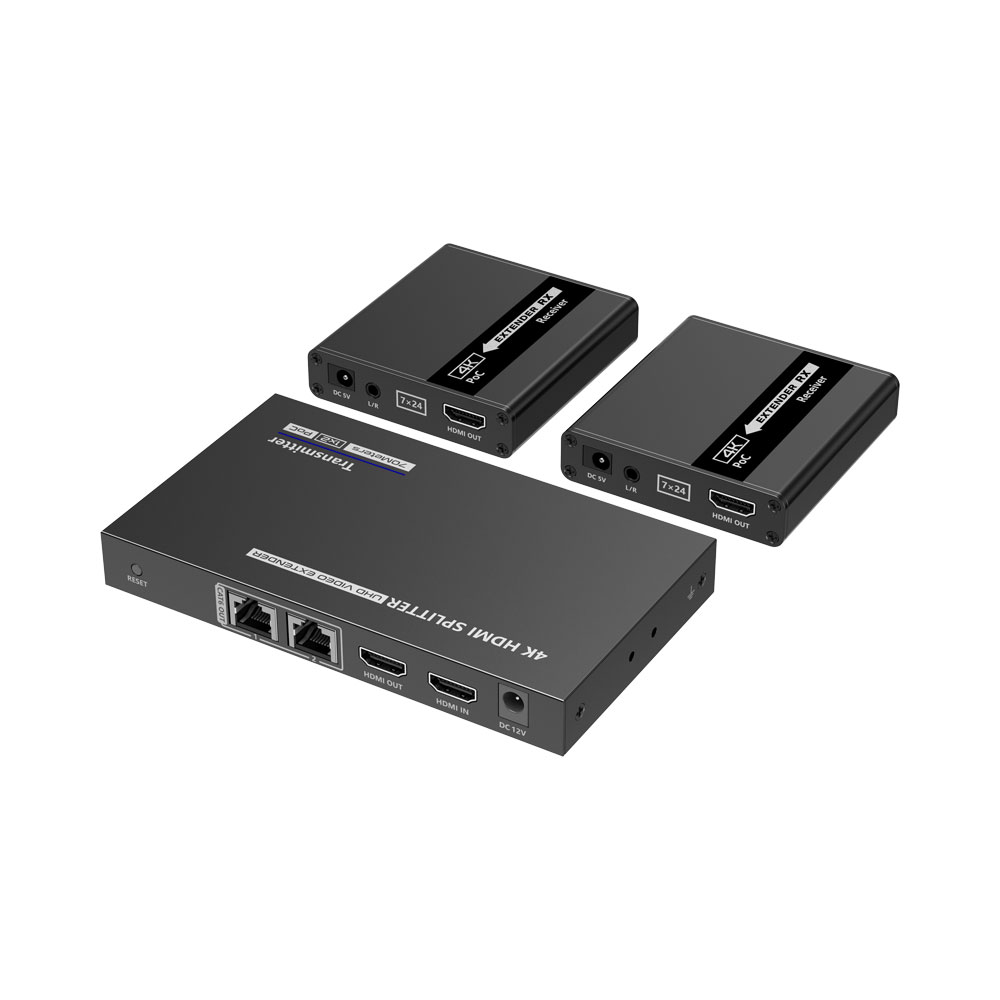

Lenkeng 1X2 HDMI EXTENDER 4K@30Hz 40M -1080P@70M

Description

The Lenkeng 1X2 HDMI EXTENDER 4K@30Hz 40M -1080P@70M is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Zero-Latency Transmission
• Supports up to 4K @30Hz Resolution, Downward Compatible
• Supports HDR10
• Distribute 1? HDMI Source to 2? HDMI Displays
• Supports CAT6/6A/7 Network Cable, Which Can Transmit 1080p Signal up to 70m and 4K @30Hz Signal up to 40m

Technical Specifications:
FEATURES

? Zero-Latency Transmission
? Supports up to 4K @30Hz Resolution, Downward Compatible
? Supports HDR10
? Distribute 1? HDMI Source to 2? HDMI Displays
? Supports CAT6/6A/7 Network Cable, Which Can Transmit 1080p Signal up to 70m and 4K @30Hz Signal up to 40m
? Supports Power-over-Cable (PoC), Only the Transmitter Needs to be Powered
? The Transmitter Supports HDMI Loop-Out
? Supports Bi-Directional IR Passthrough (20~60KHz)
? Supports RS232 Command Control
? Surge Protection, Lightning Protection and ESD Protection

SPECIFICATIONS

? Compatibility: HDMI 1.4, HDCP 1.4
? Supported Resolutions: 800?600, 1024?768, 1280?720, 1280?960, 1366?768, 1440?900, 1680?1050, 1920?1080, 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60Hz, 4K @24/25/30Hz
? Audio Formats Supported: PCM, LPCM, DTS?HD, DTS?Audio
? Transmission Distance over CAT6/6A/7: up to 70m for 1080p @60Hz, up to 40m for 4K @30Hz
? IR Passback: Bi?Directional IR Passback (20?60kHz)
? RS232 Control: 3?Pin (GND?RxD?TxD), Default Baud Rate 9600
? Power Supply: TX DC 12V 1A, RX DC 5V 1A (RX Optional)
? Power Consumption: TX <10W, RX <2.5W
? Housing Material: Metal
? Colour: Black
? Weight: TX 280g, RX 160g (per Receiver)
? Dimensions: Transmitter: 151.5 ? 86.5 ? 19mm, Receiver: 75 ? 80 ? 18mm
? Protection: ESD Protection (1a Contact Discharge Level2 ?4kV, 1b Air Discharge Level3 ?8kV), Lightning Protection, Surge Protection
