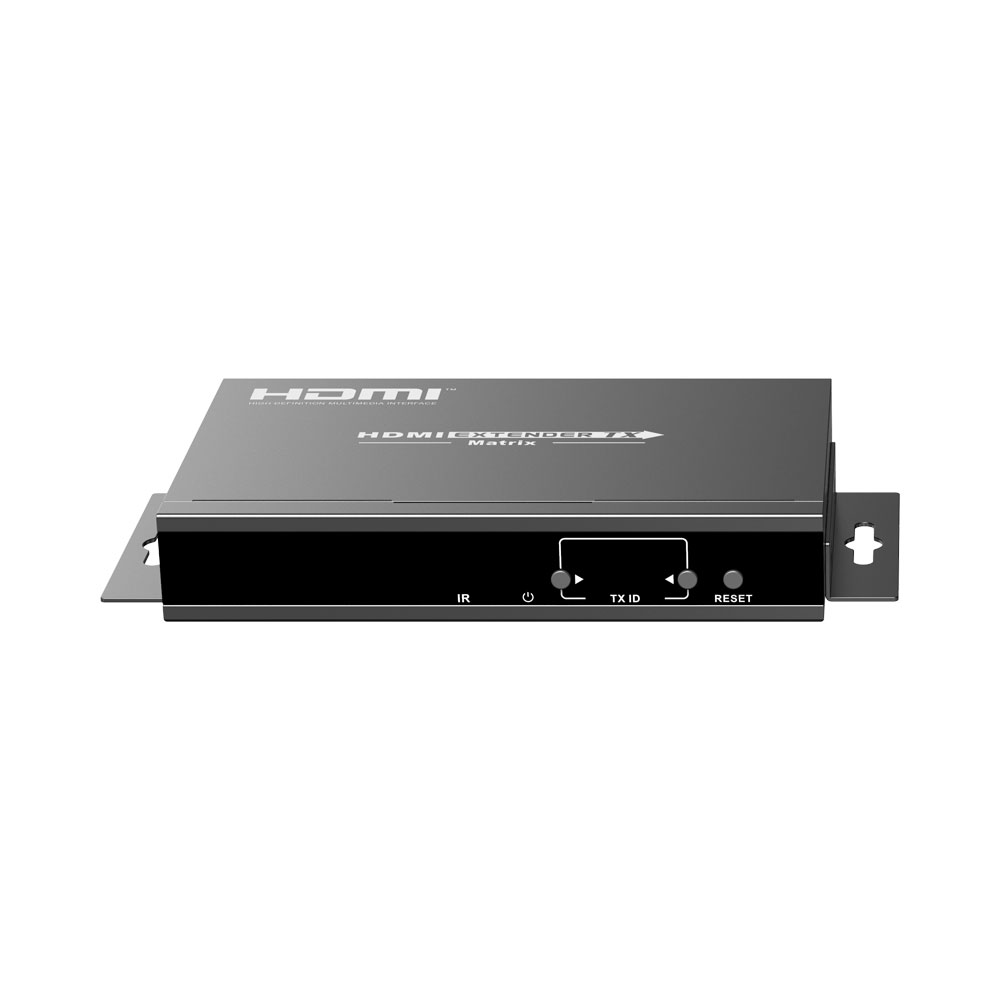

Lenkeng 120M HDBITT HDMI EXTENDER MATRIX KIT

Description

The Lenkeng 120M HDBITT HDMI EXTENDER MATRIX KIT is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• SPECIFICATIONS
• HDMI signal: HDMI1.3,compliant to HDCP
• Network Bandwidth: 18Mbps
• Supported Resolution: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720 p@50/60Hz, 1080 i@50/60Hz, 1080 p@50/60Hz
• Audio Format: PCM
• TMDS signal: 0.7-1.2Vp-p

Technical Specifications:
SPECIFICATIONS

? HDMI signal: HDMI1.3,compliant to HDCP
? Network Bandwidth: 18Mbps
? Supported Resolution: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720 p@50/60Hz, 1080 i@50/60Hz, 1080 p@50/60Hz
? Audio Format: PCM
? TMDS signal: 0.7-1.2Vp-p
? DDC signal: 5Vp-p
? Remote Control: Supported
? IR Pass-Back: Supports 20~60KHz IR devices
? Matrix Configuration: Up to 100 source signals can be connected and switched to infinite output
? Power Supply: 5V 2A
? Power Consumption: TX?4W, RX?4W
? Weight: TX: 260g, RX: 250g Each
? Protection: Lightning Protection, Surge Protection and ESD Protection
? Dimensions: 133.8 (L) x 83.8 (W) x 23.8mm (H)
? Working Temperature: 0~60?C
? Storage Temperature: -20~70?C
? Relative Humidity: 0~95% (No Condensation)
? Colour: Black
