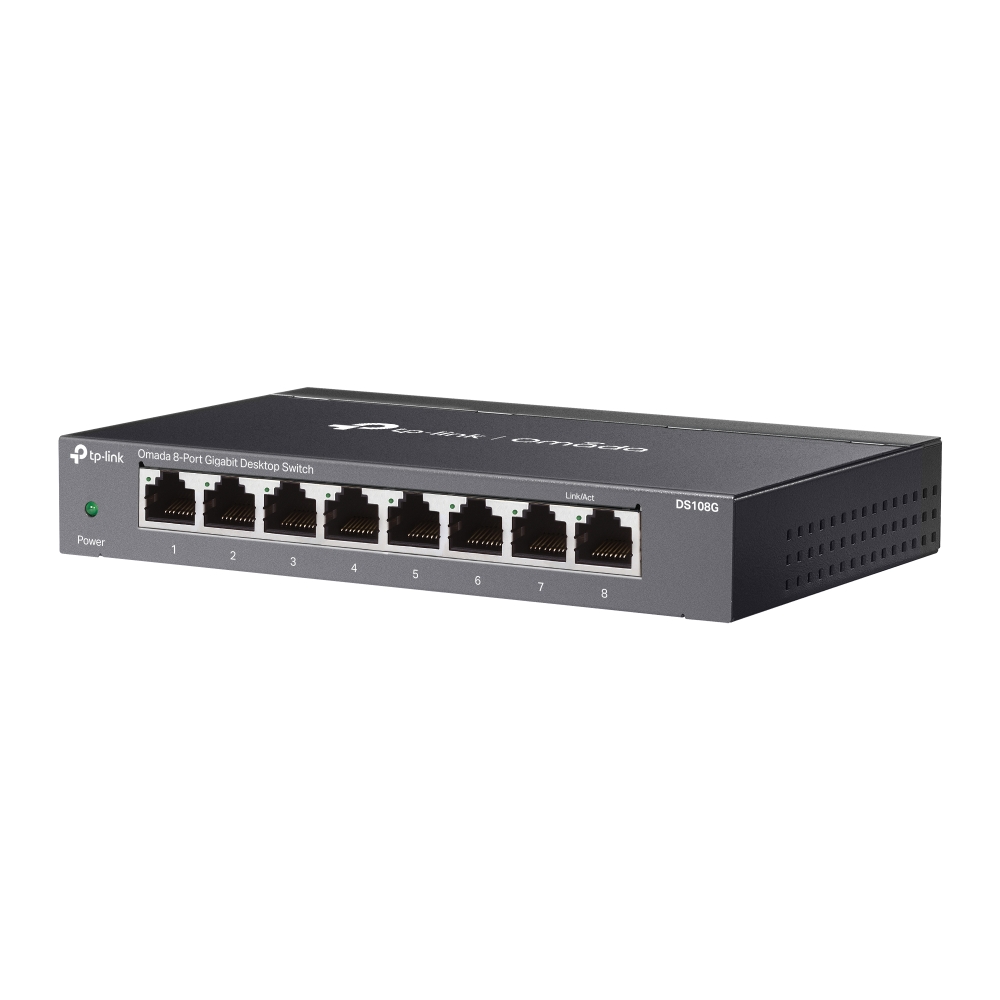

TP-Link OMADA DS108G 8-PORT GIGABIT UNMANAGED DESKTOP SWITCH

Description

The TP-Link OMADA DS108G 8-PORT GIGABIT UNMANAGED DESKTOP SWITCH is a high-performance solution from TP-Link, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 8? Gigabit Ethernet Ports – 10/100/1000Mbps RJ45 ports for high-speed wired networking
• Plug-and-Play Operation – No configuration required for quick and easy deployment
• Auto-Negotiation and Auto-MDI/MDIX – Automatically detects cable type and optimal speed
• Energy-Efficient Technology – Intelligent power management reduces energy consumption
• QoS Support – Prioritises network traffic for smoother performance

Technical Specifications:
FEATURES

? 8? Gigabit Ethernet Ports – 10/100/1000Mbps RJ45 ports for high-speed wired networking
? Plug-and-Play Operation – No configuration required for quick and easy deployment
? Auto-Negotiation and Auto-MDI/MDIX – Automatically detects cable type and optimal speed
? Energy-Efficient Technology – Intelligent power management reduces energy consumption
? QoS Support – Prioritises network traffic for smoother performance
? IGMP Snooping – Optimises multicast traffic for improved network efficiency
? Loop Prevention Function – Detects and prevents network loop issues
? Durable Metal Housing – Strong, reliable construction for long-term operation
? Desktop or Wall-Mount Installation – Flexible placement options for various environments

SPECIFICATIONS

INTERFACE
? 8? 10/100/1000Mbps RJ45 Ports
? Auto-Negotiation / Auto MDI-MDIX

STANDARDS
? IEEE 802.3i
? IEEE 802.3u
? IEEE 802.3ab
? IEEE 802.3x
? IEEE 802.1p

PERFORMANCE
? Switching Capacity: 16Gbps
? Packet Forwarding Rate: 11.9Mpps
? MAC Address Table: 4K
? Packet Buffer Memory: 1.5Mbit
? Jumbo Frame: 16KB
? Transmission Method: Store-and-Forward

POWER
? Max. Power Consumption: 3.924W (220V 50Hz)
? Max. Heat Dissipation: 13.34 BTU/h
? External Power Supply: 5V DC 0.6A

ADVANCED FUNCTIONS
? Green Ethernet Technology
? 802.3X Flow Control
? 802.1p / DSCP QoS
? IGMP Snooping
? Loop Prevention

COOLING
? Fanless Design

PHYSICAL
? Dimensions (W ? D ? H): 158 ? 100.7 ? 25.4mm

CERTIFICATION
? FCC
? CE
? RoHS

ENVIRONMENT
? Operating Temperature: 0~40?C
? Storage Temperature: -40~70?C
? Operating Humidity: 10~90% RH (Non-Condensing)
? Storage Humidity: 5~90% RH (Non-Condensing)
