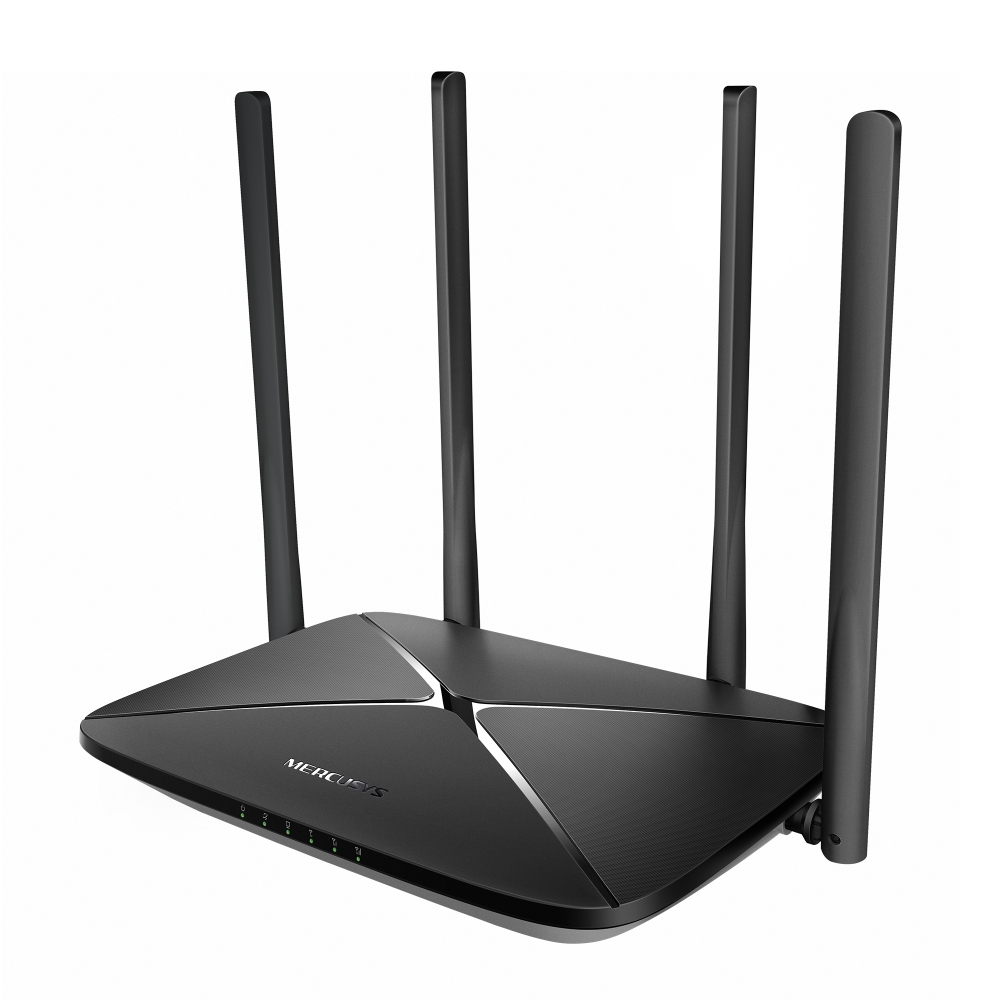

Mercusys 4G LTE 300MBPS ROUTER

Description

The Mercusys 4G LTE 300MBPS ROUTER is a high-performance solution from Mercusys, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• 4G LTE Connectivity – Share internet access with up to 32? Wi-Fi devices and enjoy download speeds of up to 150Mbps
• Plug-and-Play Setup – Simply insert a SIM card to create your wireless network with no configuration required
• 300Mbps Wi-Fi Speeds – Provides fast 2.4GHz wireless connectivity for smooth browsing, streaming and everyday use
• Maximum Network Coverage – Four external antennas deliver stable connections and wider wireless coverage
• Flexible Router Mode – LAN/WAN port supports wired broadband connection when a 4G network is unavailable

Technical Specifications:
FEATURES

? 4G LTE Connectivity – Share internet access with up to 32? Wi-Fi devices and enjoy download speeds of up to 150Mbps
? Plug-and-Play Setup – Simply insert a SIM card to create your wireless network with no configuration required
? 300Mbps Wi-Fi Speeds – Provides fast 2.4GHz wireless connectivity for smooth browsing, streaming and everyday use
? Maximum Network Coverage – Four external antennas deliver stable connections and wider wireless coverage
? Flexible Router Mode – LAN/WAN port supports wired broadband connection when a 4G network is unavailable

SPECIFICATIONS

WIRELESS
? Network Type:
– FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz)
– TDD-LTE: B38/B40 (2600/2300MHz)
– HSPA+/UMTS: B1/B5/B8 (2100/850/900MHz)

? Wi-Fi Class: N300
? Wi-Fi (2.4GHz): 300Mbps
? Wireless Standards: IEEE 802.11b/g/n
? Frequency: 2.4GHz

RECEPTION SENSITIVITY
? 11g 54M: -74.5dBm
? 11n HT20 MCS7: -73.5dBm
? 11n HT40 MCS7: -70.5dBm

TRANSMISSION POWER
? <20dBm (2.4GHz)

WIRELESS SECURITY
? WPA-PSK
? WPA2-PSK

WIRELESS FUNCTIONS
? Smart Connect
? WPS
? Wireless Schedule
? Wireless Clients Statistics

SOFTWARE

OPERATION MODES
? 3G/4G Router
? Wireless Router

CELLULAR MODE
? 4G Preferred
? 4G Only
? 3G Only

CELLULAR APN
? Data Roaming
? Network Search
? Profile Create
? APN Settings
? ISP File Upgrade
? PIN Management

WAN MODE
? Dynamic IP
? Static IP
? PPPoE
? PPTP
? L2TP

DHCP
? Server
? DHCP Client List
? Address Reservation

NAT FORWARDING
? ALG
? Virtual Server
? Port Triggering
? UPnP
? DMZ

PROTOCOLS
? IPv4
? IPv6

DATA SETTINGS
? Data Statistics
? Data Limit

GUEST NETWORK
? 2.4GHz Guest Network

PARENTAL CONTROLS
? Time Control
? Website Filtering

DDNS
? Mercusys DDNS
? DynDNS
? NO-IP

SMS
? Inbox
? New Message
? Outbox
? Drafts

SECURITY
? IPv4 SPI Firewall
? Access Control
? Service Filtering
? IP and MAC Binding
? IPv6 Firewall

SYSTEM SETTINGS
? Time Settings
? LED Control
? Diagnostics
? Firmware Upgrade
? Backup and Restore
? Reboot
? Administration
? System Log
? CWMP Settings

DEVICE MANAGEMENT
? Mercusys App
? Web GUI

TR-069
? Supported

HARDWARE
? Dimensions (W ? D ? H): 219 ? 140 ? 32mm
? Interfaces:
– 1? 10/100Mbps LAN/WAN Port
– 3? 10/100Mbps LAN Ports
– 1? Nano SIM Card Slot
? Antenna:
– 2? External 4G LTE Antennas
– 2? External Wi-Fi Antennas
? Button: WPS / Reset Button
? External Power Supply: 9V 0.85A

LED
? Power
? Internet
? LAN
? Signal (3?)

LTE STANDARD
? CAT4
? 150Mbps Download / 50Mbps Upload

ENVIRONMENT
? Operating Temperature: 0~40?C
? Storage Temperature: -40~60?C
? Operating Humidity: 10~90% RH (Non-Condensing)
? Storage Humidity: 5~90% RH (Non-Condensing)
