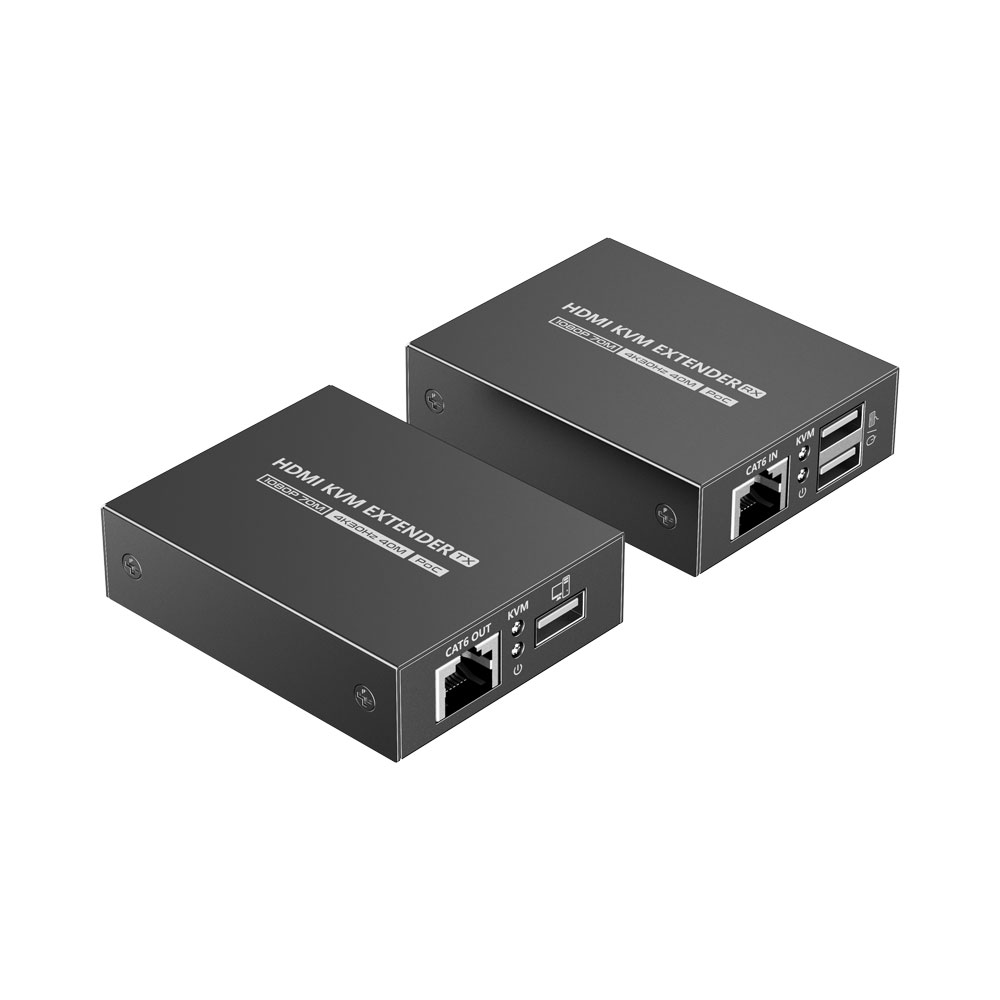

Lenkeng HDMI KVM EXTENDER UP TO 70M

Description

The Lenkeng HDMI KVM EXTENDER UP TO 70M is a high-performance solution from Lenkeng, designed for professional and commercial applications. This product is built to meet rigorous industry standards, ensuring durability and seamless integration into professional environments.

Key Features:

• FEATURES
• Zero Latency Uncompressed HDMI Video Signal
• Extends 1080p @60Hz up to 70m via CAT6/6A/7 Network Cable
• Supports HDR10
• Supports Power-Over-Cable
• Supports KVM Control

Technical Specifications:
FEATURES

? Zero Latency Uncompressed HDMI Video Signal
? Extends 1080p @60Hz up to 70m via CAT6/6A/7 Network Cable
? Supports HDR10
? Supports Power-Over-Cable
? Supports KVM Control

SPECIFICATIONS

? Transmitter | Receiver
VIDEO SIGNAL
? Transmission Medium: CAT6/6A/7
? HDMI Cable: 3~5m | 3~5m
? Max Transmission Rate: 10.2Gbps
? HDR10: Yes
? EDID Through: Yes
? KVM: Yes
? Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
? Input and Output DDC Signal: 5Vp-p (TTL)
? Compatibility: HDMI 1.4, HDCP 1.4
Resolution: 800 ? 600, 1024 ? 768, 1280 ? 720,1280 ? 960, 1366 ? 768, 1440 ? 900,1680 ? 1050, 1920 ? 1080, 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60Hz, 3840 ? 2160 @24/25/30Hz
? Distance: CAT6/6A/7 | 1080p @60Hz Transmission up to 70m, 4K @30Hz Transmission up to 40m
AUDIO SIGNAL
? Formats: DTS, DTS-HD, PCM, LPCM
POWER SUPPLY
? Interface: 1? DC5V 2.1 Jack without Thread
? Voltage: DC5V 2A (Only TX Needs Power Supply)
? Working Power: TX and RX <10W
OPERATING ENVIRONMENT
? Operating Temperature: -20~60?C
? Storage Temperature: -30~70?C
? Humidity: 0~90% (No Condensation)
PHYSICAL PROPERTIES
? Input: 1? DC2.1, 1? HDMI, 1? USB Type-A1? DC2.1, 1? RJ45, 12 USB Type-A
? Output: 1? RJ45, 1? HDMI
? Material: Metal
? Weight: 123g, 123g
? Colour: Black
? Dimensions (L ? W ? H): TX: 75 ? 60 ? 20mm, RX: 75 ? 60 ? 20mm
? Static Protection Implementation of the standard: IEC61000-4-2, 1a Contact Discharge Level 2 (?4KV), 1b Air Discharge Level 3 (?8KV)
? Certification: FCC/CE/RoHS
